New WE-EF BUC230 LED Bulkhead

News /
15 May 2016

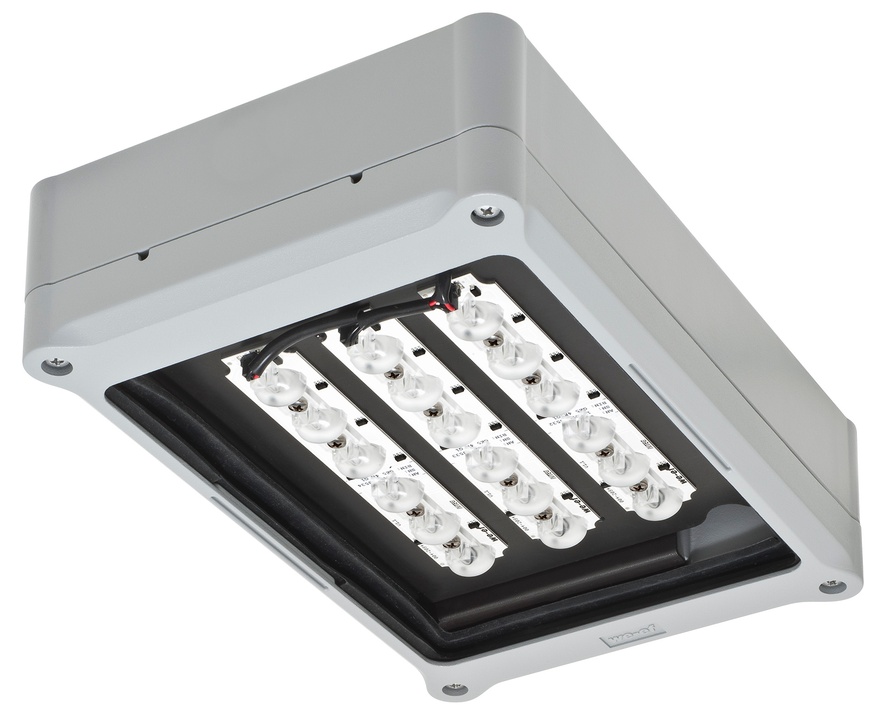

Purpose-designed and manufactured in Australia, the new WE-EF BUC230 LED bulkhead meets several challenges of a surface-mounted luminaire. The design brief was to produce a very compact (320x210x79mm), high performing, extremely durable luminaire for industrial and mining applications, where space restrictions and resistance to harsh surrounding conditions are critical.

The result is a slimline, marine-grade, die-cast aluminium industrial fitting that is highly durable and robust. It’s perfect for high traffic areas and is impact and vandal-resistant. With its array of high-performing optics BUC230 can manage 7 distribution options. The fitting is supplied with a 10-year LED warranty.

Other details:

IP66. 5CE superior corrosion protection including polymer-coated hardware. PMMA lens. Silicone CCG® Controlled Compression Gasket. Luminaire is factory sealed and does not need to be opened during installation. Integral EC electronic converter in thermally separated compartment. Advanced thermal management protects LEDs while optimising lumens output. CAD-optimised optics for superior illumination and glare control. Optional 1-10 V analogue dimming interface.


Luminaires that provide effective and innovative solutions for architectural lighting challenges.

Learn more
